GF-602EL
GF-602EL
■Socket *2, Maximum support for dual channel 32GB
■6 high-performance Gigabit Ethernet ports,support ten Ethernet ports simultaneously
■Dual storage devices, M.2 & removable 2.5”hard drives, easy to manage and replace
■HDMI+VGA, support independent dual display output
Processor System | |
CPU | Loongnix LS3A4000-I, TDP 30W |
Memory | |
Slot Number | SODIMM Socket *2, Maximum support for dual channel 32GB |
Graphics | |
Controller | 7A1000 Integrated display |
VGA | Analog signal display interface, VGA+HDMI supports synchronous/asynchronous dual display function VGA+HDMI |
HDMI | High-definition multimedia display interface, side stand standard HDMI interface HDMI |
Storage | |
M.2/HDD | M.2 2242~2280 M-key Socket, 1TB Maximum support 1TB, expandable 2.5-inch hard drive, support extraction |

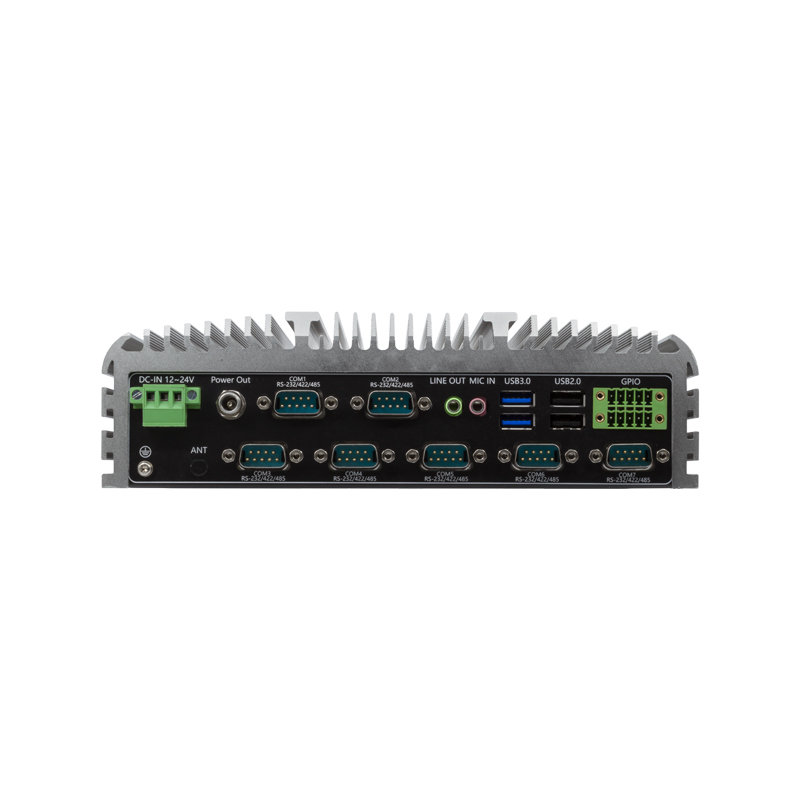

Rear panel | |
DC IN | 3pin Phoenix Terminal, DC-IN 12~24V |
DC Out | 2.5/5.5 DC Jack, DC:12V / 3A |
COM | 7*COM(Optional RS232/RS485 mode, optional 5V/12V) |
USB | 2*USB3.0, 2*USB2.0 |
Audio | 1* MIC + Line-Out |
GPIO | 8 bit TTL Level GPIO,2*5pin Phoenix Terminal, charged (5V/1A) |

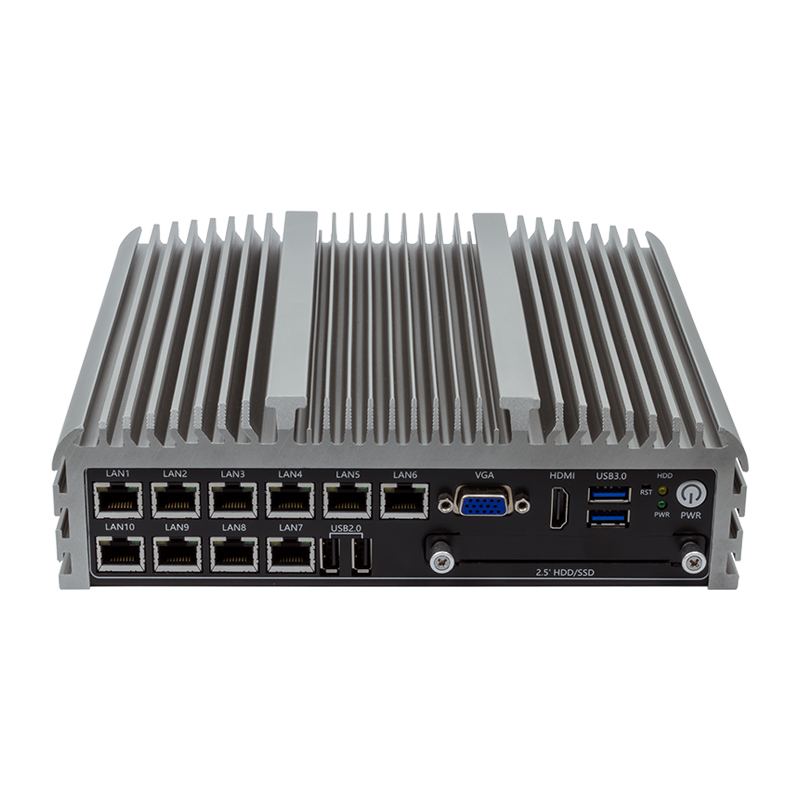

Front panel | |
Power Switch | PWR SW+PWR LED |
HDD Dack | 2.5" Hard disk extraction box |
USB | 2*USB3.0, 2*USB2.0 |
VGA | VGA |
HDMI | HDMI |
LAN | 6* Gigabit Ethernet port (Netcom) + 4* Gigabit Ethernet port (Intel) |
Physical feature | |
Dimensions (W×D×H)/Weight | Without ear stand：(W×D×H)224x220x70mm, about 2.5KG |
Material/Surface | Aluminum alloy, sheet metal/silver gray |
Environment | |
Operation | temperature：-20~60℃，humidity：0%~90%，no condensation |
Storage | temperature：-40~80℃，humidity：0%~90%，no condensation |
