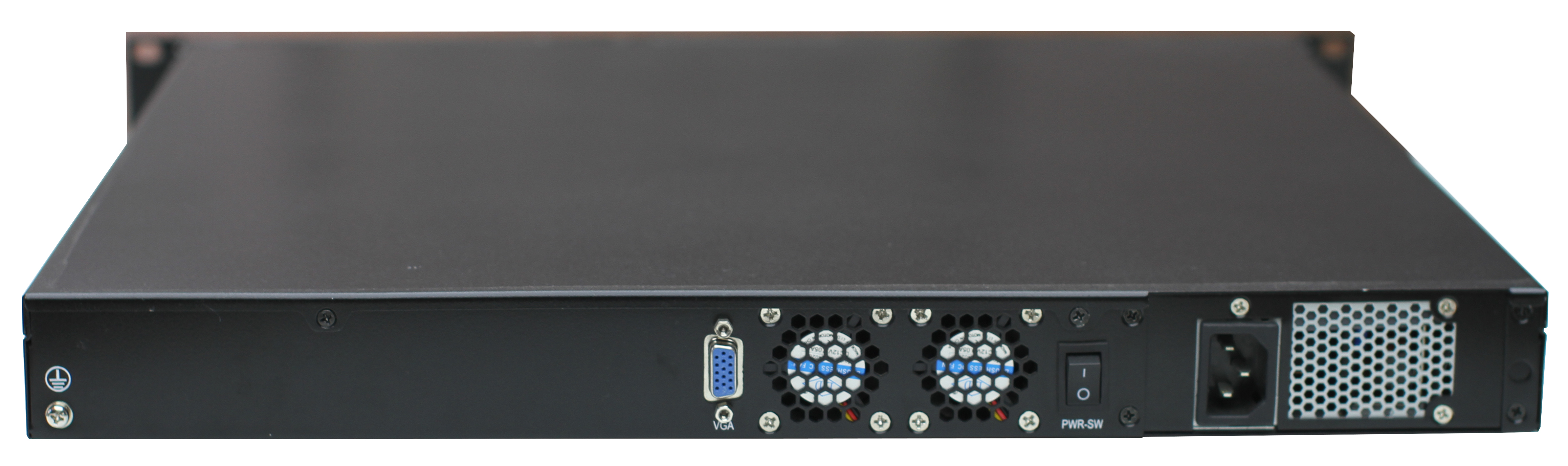

New Retail Gateway 1U-H1102

PRODUCTS > POS / KIOSK > New Retail Gateway 1U-H1102

New Retail Gateway 1U-H1102

Features

Intel? Core I5-6500 processor
6
×GbE LAN Intel? I211AT, 3 Pairs Bypass, 1 ×VGA

2×DDR4 1866/2133mhz DIMM memory, maximum support 32GB

4×SATA, 1×mSATA, 1×CF, 1×Mini PCIE, 2×PCIEx8, 1×PCIEx1

2×USB3.0, 1×RJ45 COM (Console)

Support guard dog, Bypass functions


Specifications

System

CPU

Intel ? Core i5-6500 3.2GHz

PCH

Intel? H110

Memory type

DDR4 2133 8GB

Network

Network port

6x GbE LAN

Network chip

6 x Intel? I211AT

BYPASS

3 Pairs

Serial port

Interface type

1 x RJ45 serial port

I/O port

LED

1 x Power LED
1 x HDD LED

USB interface

2×USB3.0

Display port

1 x VGA

Storage

Hard disk

3.5 -Inch 1TB

SSD

Optional

CF card

Optional

Extend Slot

PCIe

2×PCIEx8, 1×PCIEx1

Mini-PCIe

1

Other

Watchdog

Supported

GPIO

8bit

Power supply

Power type

1U ATX PSU

Power

250W

Power input

AC 220V @47-63Hz

Size, use environment

Mechanical

 440*450*43.6mm(W*D*H)

Operating temperature

0-45, Relative humidity  10%-90%  non condensing

Storage temperature

-20~75, Relative humidity  5%-95%   non condensing
