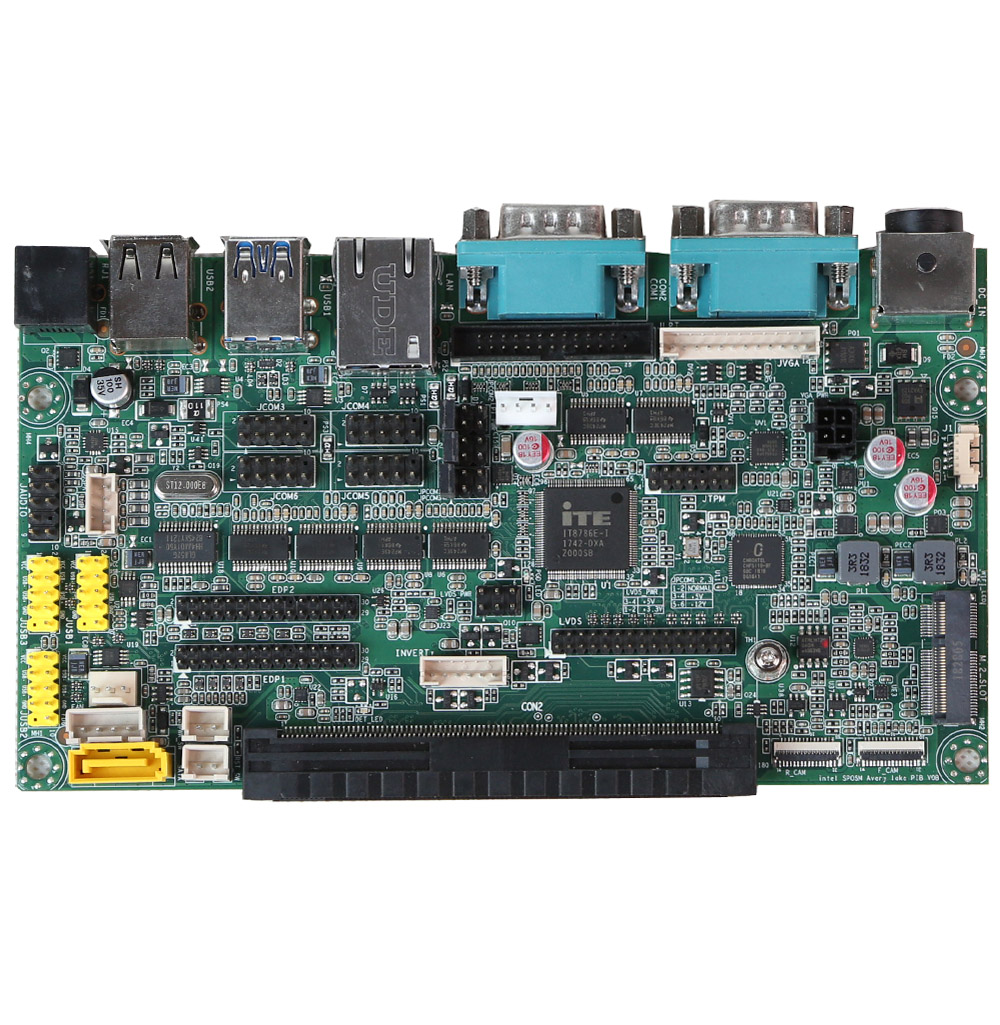

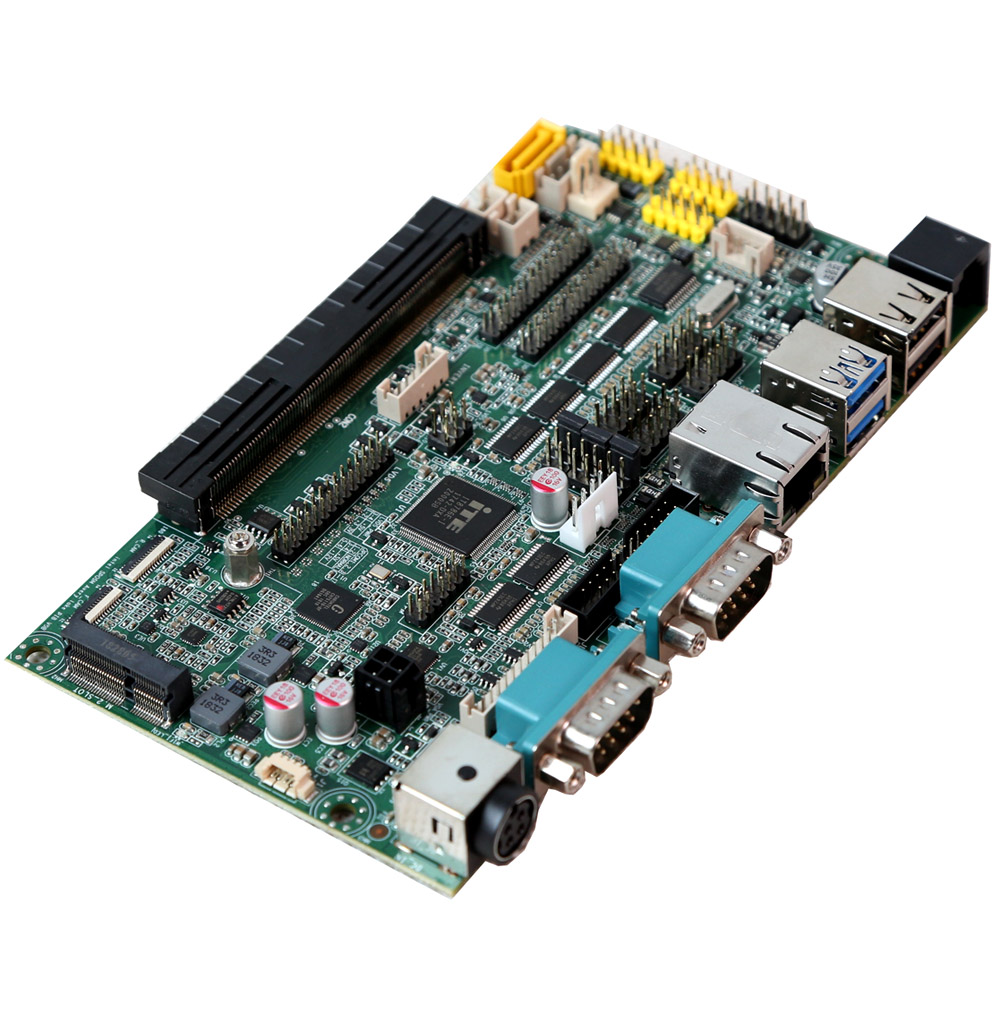

SPOSM PIB

FEATURES

◆ use with SPOSM Avery Lake core board

◆1×JAE 180Pin board-to-board connector

◆1×VGA, 1×LVDS, 2×eDP

◆1×USB3.0, 9×USB2.0, 6×COM, 1×LPT, 1×RJ11, 1×RJ45 LAN

◆1×SATA, 1× m.2 key-e (support WIFI and bluetooth)

◆ support watchdog, network wake up, diskless guidance and other functions

◆ modular design, is conducive to product iteration update, maintenance, shorten the research and development cycle, reduce costs

Processor System
CPU	N/A
PCH	N/A
Memory
Slot Number	N/A
Type	N/A
Max Size	N/A
Channels	N/A
Graphics
Controller	Intel? HD Graphics 620
VGA	1×Header
DVI	0
HDMI	0
DP	0
LVDS	1
eDP	2
Multi Display	Clone/Extend Dual Display
Storage
SATA	1
mSATA	0
M.2	0
COM
Port Number	6
Mode	RS232
PWR	COM1~COM3 supports 5V/12V power
Expansion Slot
PCIe	0
Mini-PCIe	0
M.2	1，Key-E 2230（Support WIFI、BT）

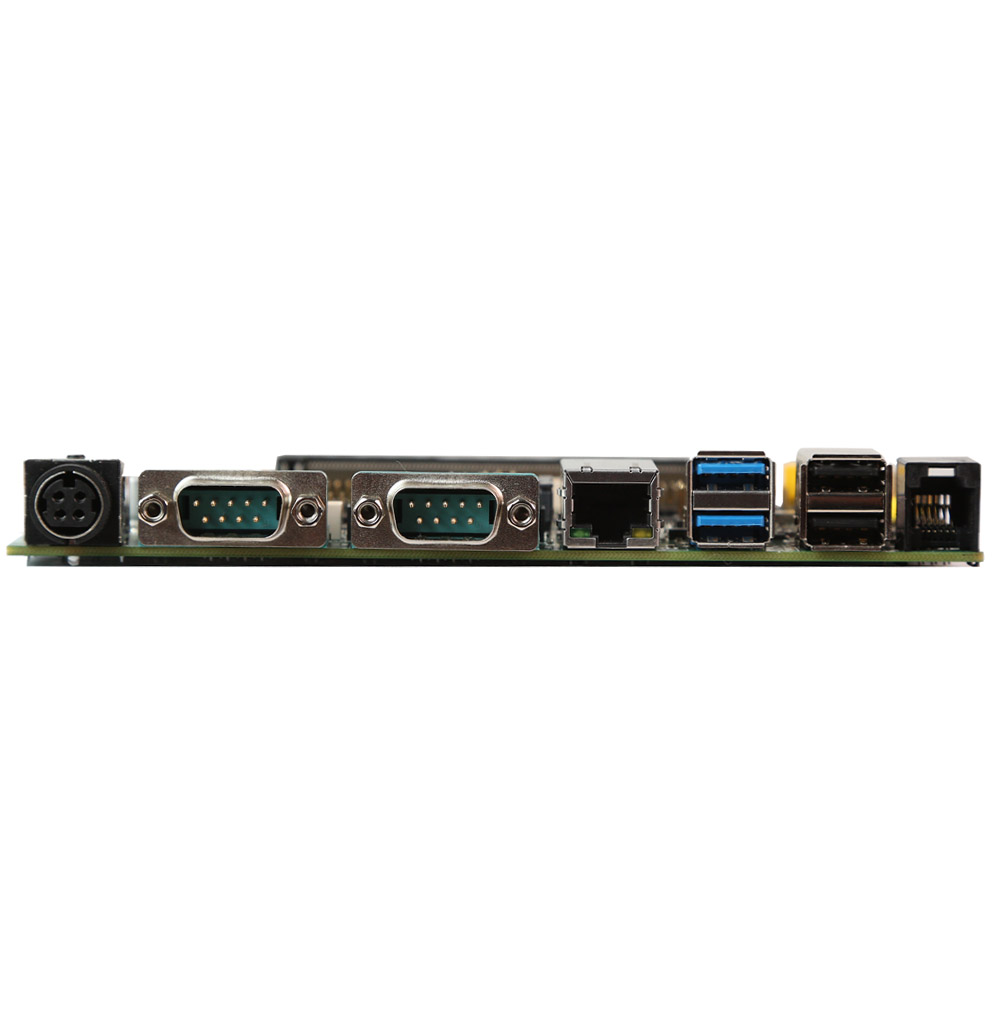

Rear I/O
VGA	0
DVI	0
HDMI	0
DP	0
DC_IN	1
COM	2
USB	1×USB3.0，3×USB2.0
LAN	1
RJ11	1
LED	0
Internal Connector
LVDS/Inverter	1/1
eDP	2
VGA	1
MIPI-CSI	1
LPT	1
COM	4
USB	3×Header，Header for 6 USB2.0 Ports
Audio	1×F_AUDIO，1×SPK
I2C	1×I2C Header
M.2	1，Key-E 2230
TPM	1
JAE	1× KX25-180P
Mechanical & Environment
Dimension	160.30mm×89.38mm
PWR Input	DC 12V
Operation	0~50℃，10%~90%，non-condensing
Storage	-25~75℃，5%~95%，non-condensing
