GF-604EI
GF-604EI
■Adopt Intel? 6,7th generation, low power processor (regularly use i3-6100U)
■1 GigaLAN+4 POE (PSE) Intel high-performance Gigabit Ethernet ports
■Mini PCIe / M.2 E-key socket, suitable for 4G , Wifi , AI module
■Support M.2 NGFF SSD, shockproof, high speed, long service life
■6 USB sockets, 2 COM ports, support RS232/485
■12~24V wide voltage input, power consumption within 90W
■1 GigaLAN+4 POE (PSE) Intel high-performance Gigabit Ethernet ports
■Mini PCIe / M.2 E-key socket, suitable for 4G , Wifi , AI module
■Support M.2 NGFF SSD, shockproof, high speed, long service life
■6 USB sockets, 2 COM ports, support RS232/485
■12~24V wide voltage input, power consumption within 90W
Processor System
| CPU | CPU board with Intel? Skylake/Kaby Lake U-series processor |
Memory
| Slot Number | 1×Notebook memory slot supports DDR4 2133MHz up to 16GB |
Graphics (optional)
| VGA（optional 1） | analog signal display interface, VGA+HDMI supports synchronous/asynchronous dual display function |
| HDMI（optional 2） | high-definition multimedia display interface, side stand standard HDMI interface |
Storage
| HDD | 128G M.2 SSD，customized capacity, expandable 2.5-inch hard drive |

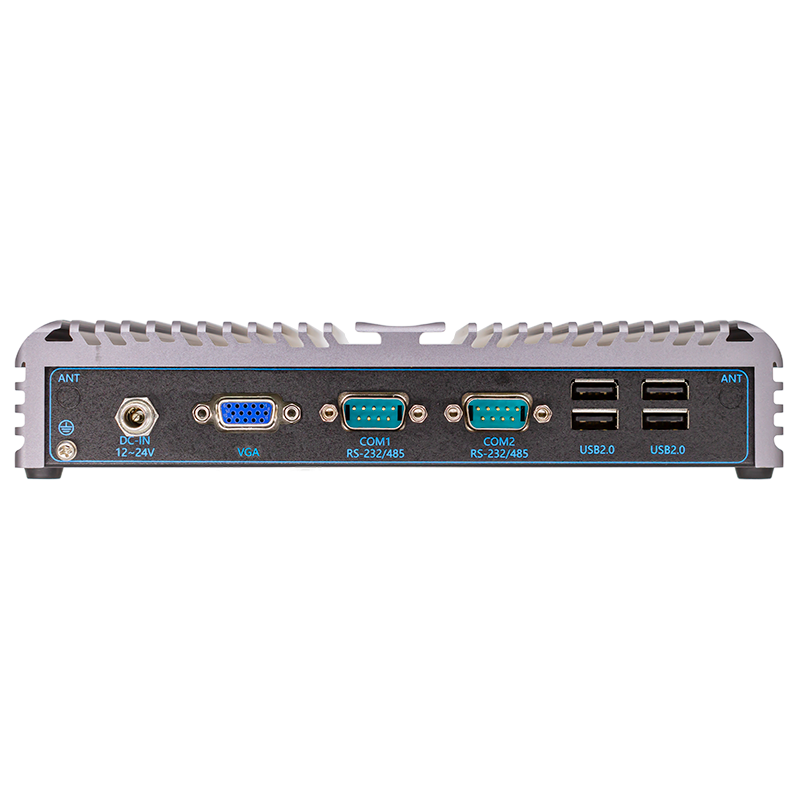

Rear panel (optional)
| DC IN | 1， DC-IN 12~24V |
| VGA | 1（optional） |
| HDMI | 1（oiptional） |
| USB | 4×USB2.0 |
| COM | 2, support RS232/RS485, switch by BIOS, optional 5V/12V live |

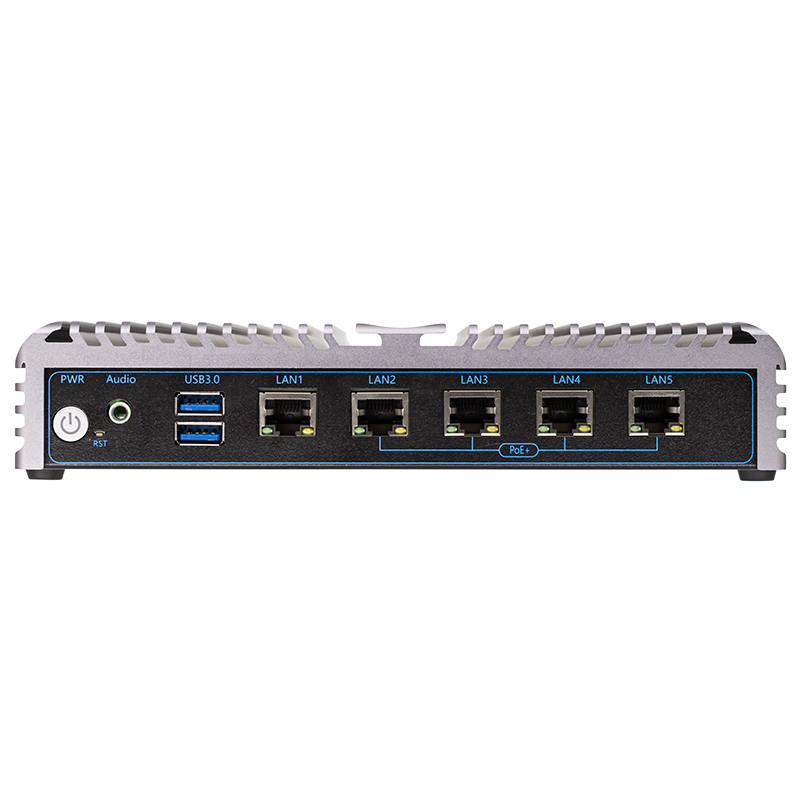

Front panel
| PWR Switch | 1×PWR SW+PWR LED |
| RST Switch | 1 |
| Audio | 1×Line-out |
| USB | 2×USB3.0 |
| LAN | 5×RJ45, support 10/100/1000Mbps adaptive network, LAN2~5 support PoE (48V/15W) |
Physical properties
| Dimensions (W×D×H)/Weight | Without ear stand: 218×140×42 With ear stand: 245×140×45mm about 2.00KG |
| Material/Surface | High-quality aluminum extrusion alloy, galvanized steel sheet/silver gray |
Environment
| Operation | Temperature: -20~60℃, Humidity: 0%~90%, non-condensing |
| Storage | Temperature: -40~80℃, Humidity: 0%~90%, non-condensing |
