CPU

Board   Mounted Intel? Bay Trail J1900 Quad Core 2.0GHz CPU

Memory

Slot   Number

DDR3L   1333MHz1×Notebook memory slot supports DDR3L 1333MHz up to 8GB

Graphics

VGA

Analog signal display interface,   VGA+HDMI supports synchronous/asynchronous dual display function

HDMI

High-definition   multimedia display interface, side stand standard HDMI interface

Storage

HDD

128G MSATA SSD, customizable capacity, expandable 2.5-inch hard drive

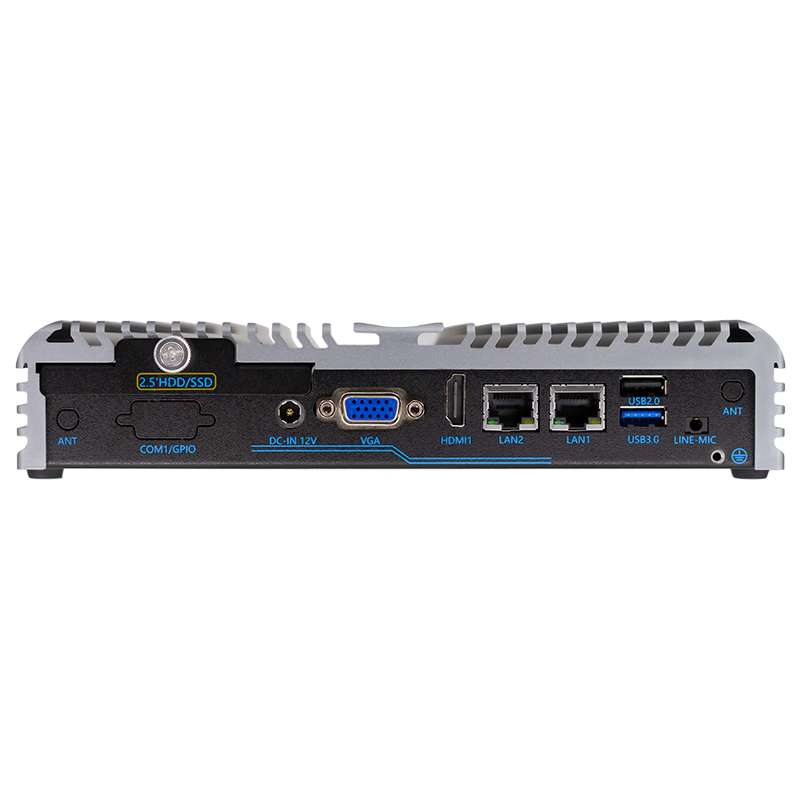

Rear panel

VGA

1

DC   IN

1，DC-IN   12V（Optional 9-36V）

HDMI

1

USB

1*USB3.0+1*USB2.0

LAN

2×RJ45,   support 10/100/1000Mbps adaptive network

Audio

1×Line-out

COM1/GPIO

Optional   COM1 is standard RS232/GPIO is 8 channels

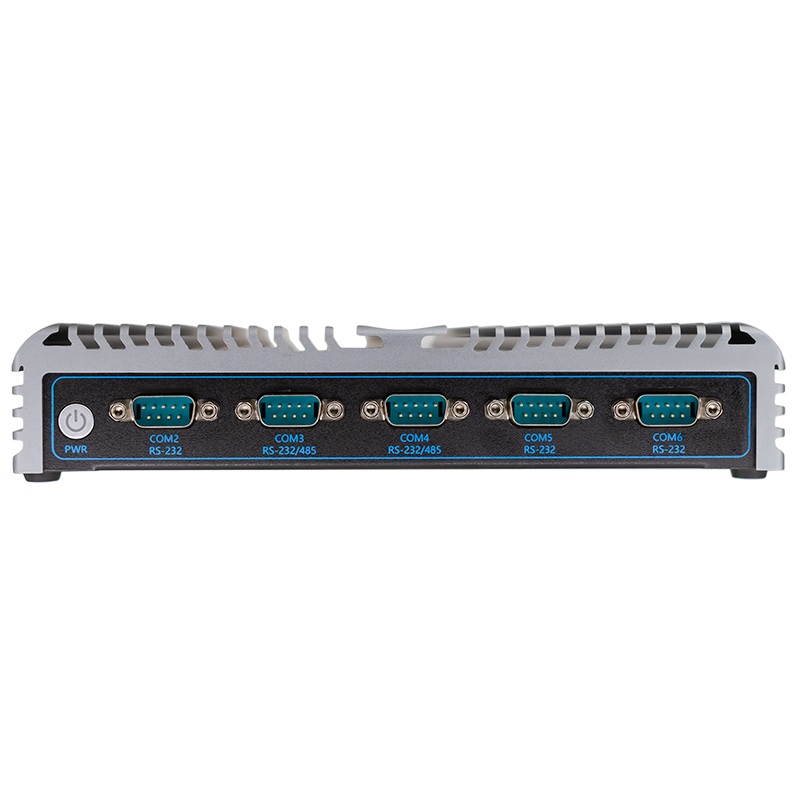

Front panel（optional）

USB

4×USB2.0

PWR   Switch

1×PWR   SW+PWR LED

COM

4×COM（Standard RS232 mode, COM3, COM4 optional RS232/RS485 mode）

Physical properties

Dimensions   (W×D×H)/Weight

Without   ear stand: 218×150×42 With ear stand: 245×150×45mm about 2.00KG

Material/Surface

High   quality aluminum extrusion alloy, galvanized steel sheet/silver grey

Environment

Operation

temperature:   -20~60℃, humidity: 0%~90%, no condensation

Storage

temperature:   -40~80℃, humidity: 0%~90%, no condensation
